CNC punching is a sheet metal fabrication technique that produces clean and accurate holes in a workpiece. It uses CNC technology to control the movement of the cutting tools so the final parts have high accuracy and precision. This makes it indispensable when fabricating automotive doors, electrical enclosures, and custom architectural metalwork.
As a newbie or seasoned machinist, it is expected to wonder about the roles CNC punching plays in sheet metal fabrication. This article will be your guide on CNC sheet metal punching. It will explain what CNC punching is, how it works in sheet metal fabrication, and the industrial applications of CNC punching operation.

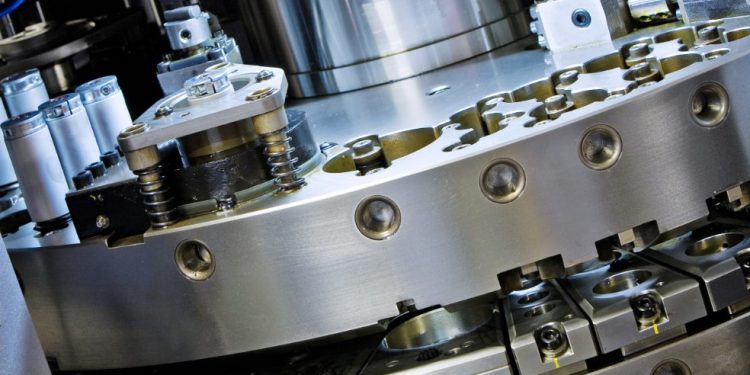

What is CNC Punching
CNC punching is a sheet metal fabrication technique that uses computer software to direct cutting tool movement. It creates precise holes and patterns in a metal sheet using a punching machine. This machine is made up of a CNC control unit, punching tool, worktable, and clamping mechanism as the key components.
- The control unit is the brain behind CNC punching. It converts the CAD design to G-codes that control the actions of the punching tools.
- Furthermore, the tool consists of punches and dies. They perform the cutting and shaping operations.
- The worktable supports the sheet metal and provides a stable surface. It is often integrated with feeding mechanisms to optimize production.
- Finally, the clamping system holds the sheet metal and aligns it with the punching head.
How does CNC Punching Work in Sheet Metal Fabrication
Punching is similar to most CNC machining operations. It involves creating your design and replicating it. Let’s look at a step-by-step breakdown of how CNC punching works.
Step 1- Design Phase
The first step is to create a design of what you want the final part to look like. You do this using CAD software. The design should include all necessary features and hole dimensions. After that, you convert to a machine-readable format with the aid of CAM software. The file contains instructions on how and where the punching tools should move.
Step 2- Machine Setup
You then set up the machine appropriately. Choose the correct set of punches and dies and install them on the tool turret. Load the workpiece on the table. The metal is usually aluminum, steel, or copper. Thereafter, appropriate work-holding jigs and fixtures are used to clamp the part.
Step 3- Punching Operation
After setting up the machine, you carry out the punching operation. To do this, position the sheet metal under the punching head and create holes. The punch is lowered through the workpiece and into the die. This action cuts through the metal sheet. Based on the number and intricacies of the pattern, you can use a single toolset or a series of overlapping ones.
Step 4- Finishing and Inspection
The final step in CNC punching is to finish the hole. Finishing entails deburring the holes to produce smooth edges. Alternatively, you can carry out suitable surface treatment techniques to improve aesthetics and performance. After everything, inspect the final holes for quality and ensure the dimensions meet specifications. Remove any leftover material and recycle.
Benefits of CNC Punching for Precision Hole Cutting
CNC punching is usually the first choice when cutting and shaping metal sheets. Below are the key benefits of CNC punching in sheet metal fabrication.
High Precision and Accuracy
CNC punching comes with unwavering accuracy and precision. It is an automated process and requires little to no human intervention. Additionally, the machine can achieve tolerances of +/- 0.1 mm and less. It produces parts exactly to specifications. The consistency across production runs ensures that all the products are identical.
Versatility in Design
Another benefit of using CNC punching in sheet metal fabrication is design versatility. There is no limit to the design you can replicate. The punching tools have the ability to produce different hole shapes including round, rectangular, and square. Furthermore, CNC punching can handle varying thicknesses ranging from 0.5mm to 6mm.
Cost-Effectiveness
CNC punching is a budget-friendly part fabrication technique. The cost-effectiveness of CNC punching can be attributed to many factors. The reduced need for human intervention lowers labor costs, and the operator can simultaneously carry out other essential processes. Furthermore, CNC punching optimizes material usage and minimizes waste.
Speed and Efficiency
Speed and efficiency are other reasons CNC punching thrives in modern manufacturing. Getting your products to market on time gives you a competitive edge and makes you remain relevant. Compared to conventional techniques, the punching tools can create hundreds of holes in a minute. Additionally, the machine has multi-tool capabilities, which speed up operations.
Eco-Friendly Operation
CNC punching is an environmentally friendly operation. It works with thin metal sheets and comes with relatively less power. Additionally, you can reuse the tools multiple times, which conserves resources. Furthermore, CNC punching does not generate waste. It is possible to recycle scrap metal and protect the environment.
Applications of CNC Punching
The following are some industrial applications of CNC punching operation.
Automotive Industry
The automotive sector uses CNC punching extensively for prototyping and high-volume production. This technique produces precise holes that ensure proper fit during part assembly. It is also compatible with many lightweight metals, such as aluminum and titanium, improving fuel efficiency. Examples of CNC-punched car parts include doors, frames, and heat shields.
Electronics and Enclosures
CNC punching also has applications when manufacturing electrical components such as enclosures, cooling systems, and support structures for printed circuit boards. This fabrication technique makes intricate cutouts and complex designs ideal for enclosures. Additionally, it meets the precision requirements in the electrical industry and ensures safety.
Construction and Architectural Applications
CNC-punched holes and features serve both decorative and functional purposes. Hence, they are useful when fabricating architectural and construction components. The operation is adaptable and allows you to experiment unique designs with high repeatability. You can use CNC punching for building facades, railings, and custom metalwork.
Aerospace Industry
The use of CNC punching in the aerospace industry is nothing new. This sector has strict precision, part performance, and weight reduction requirements. CNC punching is the perfect candidate as it meets all these demands. The parts, including aircraft panels, seat frames, and avionics housings, perform optimally in demanding conditions.
CNC Punching Vs. Other Sheet Metal Cutting Processes
There are other sheet metal cutting processes that are suitable candidates for sheet metal fabrication. Let’s look at how they compare with CNC punching.
Laser Cutting
Laser cutting is a non contact process that uses a high powered laser beam to make accurate cuts. The laser beam melts the metal along the cutting path as directed by CNC programming. Simultaneously, a gas jet blows the molten metal away from the cut zone. Laser cutting is fast and results in minimal material distortion.
Plasma Cutting
You can also use plasma cutting instead of CNC punching in certain instances. The cutting tool here is a high-velocity jet of ionized gas. This gas melts the material and creates a clean cut. With plasma cutting, you can work on very thick materials. Additionally, it has a fast cutting speed and is relatively affordable.
Waterjet Cutting
Waterjet cutting is a sheet metal fabrication process that achieves smooth edges that do not need further processing. It uses a high pressure water stream as the cutting tool. You can also utilize abrasives like garnet to enhance cutting power. Waterjet cutting is a cold process that produces no heat-affected zone. Furthermore, it can cut through many engineering materials.
Mechanical Shearing
You can also mechanically cut sheet metal using sharp blades. For mechanical shearing to work, the force must be greater than the shear strength of the workpiece material. Mechanical shearing is cost-effective, and small and medium-scale businesses can afford it. However, this operation is limited to straight cuts and has a potential for burrs.
Conclusion
CNC punching is key in product development. It is a sheet metal cutting technique that creates high quality holes and designs. This process is automated and comes with minimal human error. Additionally, CNC punching is fast, and forms features in sheet metal swiftly. However, this sheet metal fabrication process comes with some shortcomings. There is a limit to the metal thickness that can be processed. CNC punching also finds it difficult to produce very complex cuts.
